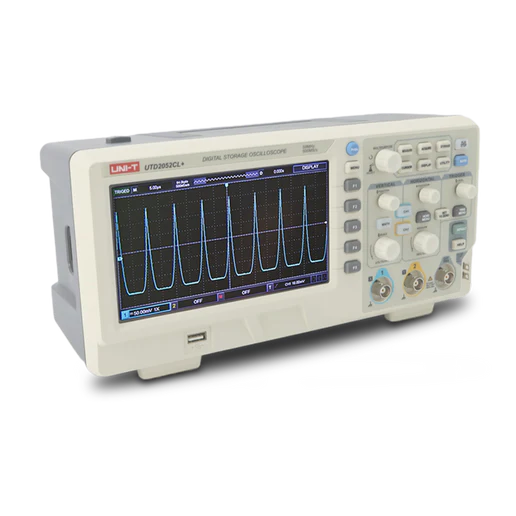

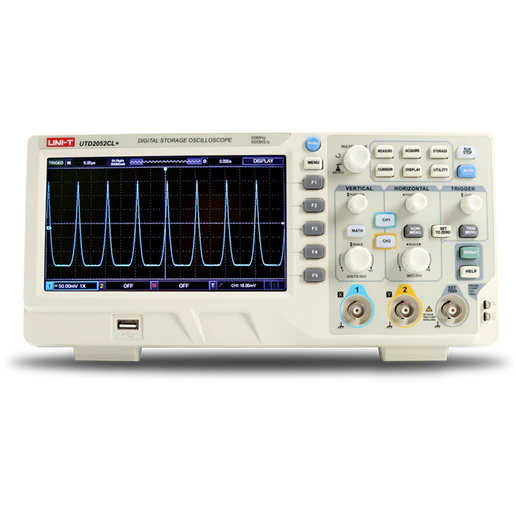

UTD2052CL+ Digital Oscilloscope
| Feature | Specification |
|---|---|
| Model Number | UTD2052CL+ |
| Bandwidth | 50MHz |
| Channels | 2 Analog |
| Real-Time Sample Rate | 500MSa/S |
| Rise Time | ā¤7ns |
| Memory Depth | 64kpts |
| Waveform capture rate | 5,000wfms/s |
| Time-base scale | 2ns/div-50s/div |
| Input impedance | (1M0Ā± 2%)//(18pFĀ± 3 pF) |
| Waveform Generator | No |
| Display | 7-inch LCD |
| Touchscreen | Ā No |
| Warranty | 3 years |
| Shipping Dimensions (W x H x L) | 306mmx 138mmx 124mm |
| Shipping Weight | 3 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |

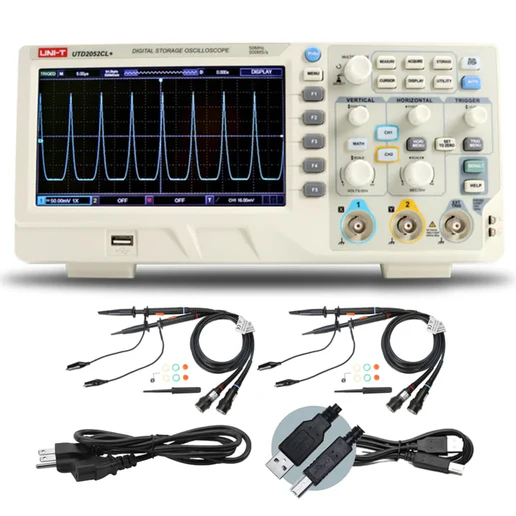

| Included Accessories | Power cord, USB2.0 printing cable, UT-P03 Passive probe x 2(lx,10x switchable,60MHz) |
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$14,900.00
18
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
- Bandwidth:Ā 50MHz
- Channels:Ā 2 Analog
- REAL-TIME SAMPLE RATEĀ :Ā 500MSa/s
- Rise time:Ā ā¤7ns
- Memory depth:Ā 64Mpts
- Waveform capture rate:Ā 5000wfms/s
