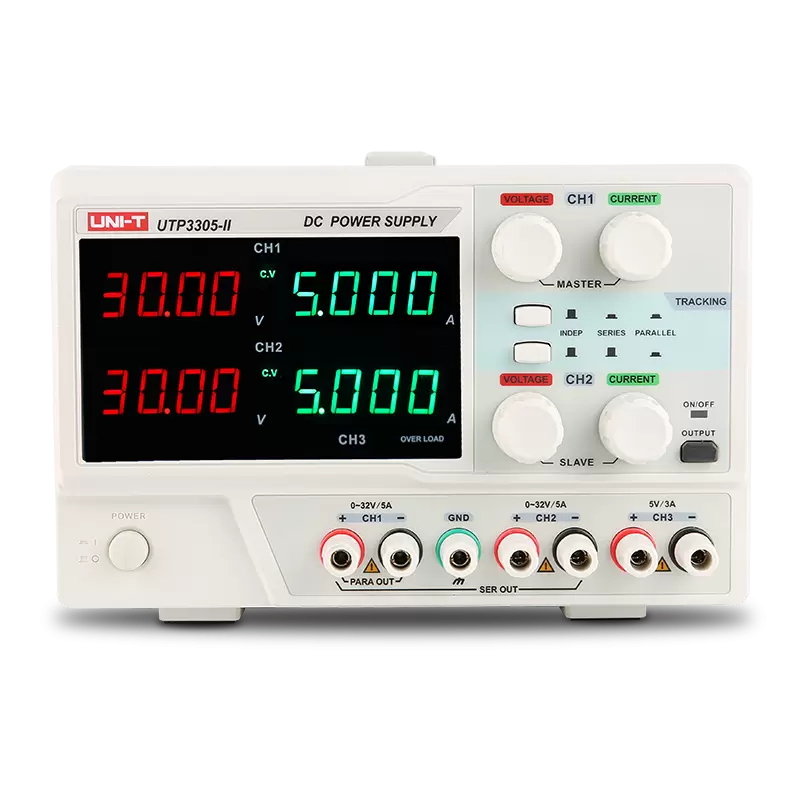

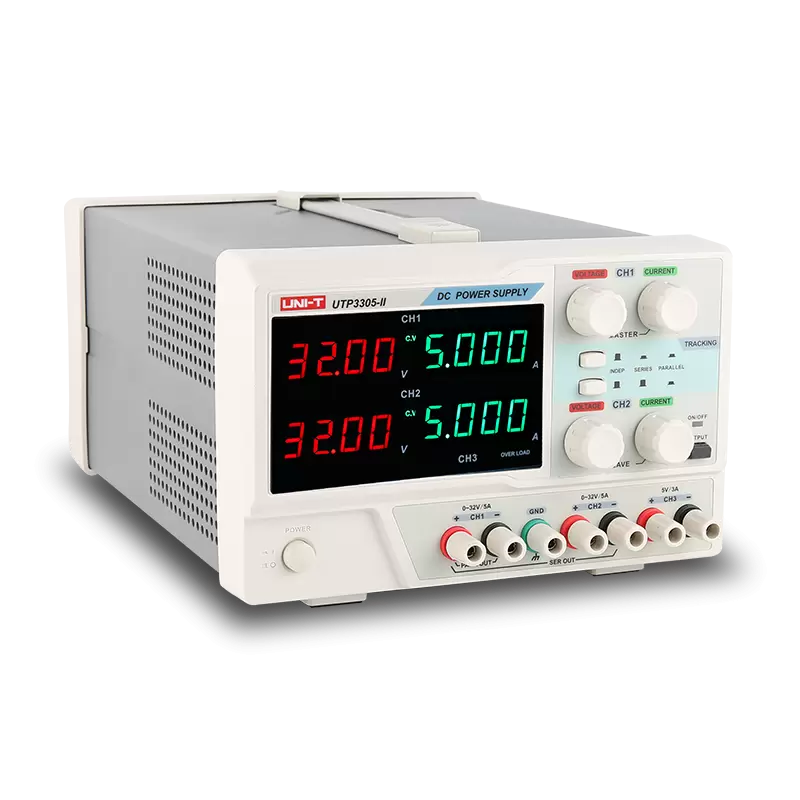

UNI-T UTP3305ii DC Power Supply
Specifications
| Models | UTP3305-II |
| RatedĀ voltageĀ (CH1/CH2) | 0-32V |
| RatedĀ currentĀ (CH1/CH2) | 0-5A |
| OutputĀ power | 335W |
| Load regulation | Voltage:Ā <0.01%+3mV |
| Current: ā¤0.2%+3mA | |
| Power supply regulation (0-30V) | Voltage:Ā <0.01%+3mV |
| Current:Ā <0.1%+5mA | |
| SettingĀ resolution | Voltage:Ā 10mV |
| Current:Ā 1mA | |
|
Read-backĀ resolution |
Voltage:Ā 10mV |
| Current:Ā 1mA | |
|
Setting/read-back accuracy (25Ā°C+5Ā°C) |
Voltage:Ā +(0.1% ofĀ reading+30mV) |
| Current: +(0.3% ofĀ reading+10mA) | |
| Ripple and noise (20Hz-20MHz) | Voltage: ā¤1mVrms |
| Current: ā¤3mArms | |
| TemperatureĀ coefficient | Voltage: ā¤300ppm/Ā°C |
| Current: ā¤300ppm/Ā°C | |
| RecoveryĀ time | <100us
(loadĀ fluctuation:Ā 50%,Ā minimumĀ load:Ā 0.5A) |
| ParallelĀ loadĀ regulation | <0.01%+20mV |
| ParallelĀ powerĀ regulation | ā¤0.01%+3mV |
| SeriesĀ loadĀ regulation | <300mV |
| SeriesĀ powerĀ regulation | ā¤0.01%+5mV |
| CH3 outputĀ features | Voltage:Ā 5.0V |
| Current:Ā 3A | |
| LoadĀ regulation:Ā 3%+5mV | |
| PowerĀ regulation:Ā 5mV | |
| Ripple:Ā <2mV | |
| PowerĀ consumption | 700W |
| Safety | VoltageĀ withstand:Ā 1mAĀ 10S (power input āĀ GNDĀ AC1800V) |
| Insulation resistance: 300MĪ©@ 500V: AC input to the shell | |
| Insulation resistance: 300MĪ©@ 500V: AC input to the DC output terminal | |
| DisplayĀ type | 4-digitĀ LEDĀ display |
| Voltage of power supply | ACĀ 110V/120V/220V/230V |
| Frequency | 50Hz/60Hz |
| ProductĀ size | 319mm x 146mm x 226mm |
| ProductĀ net weight | 10.5kg |
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$12,655.00
16
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Introduction
UTP3300-II Series are three-channel linear DC power supplies of adjustable dual channel and fixed single-channelĀ output, featuring tracking, constant voltage/current,Ā series/parallel output,Ā temperature controlled cooling fan, and over voltage/current protection.
Features
- 3-channel linear DC power supplies feature
- High-precision four-digit voltage and current display 10mV/1mA
- Low ripple/noise
- Parallel/series
- Output on/off control
